Powered type spiral conveyor

  • high speed finished plastic chain spiral conveyor may accelerate the can - 副本
  • high speed finished plastic chain spiral conveyor may accelerate the can - 副本
  • high speed finished plastic chain spiral conveyor may accelerate the can - 副本
  • high speed finished plastic chain spiral conveyor may accelerate the can - 副本
  • high speed finished plastic chain spiral conveyor may accelerate the can - 副本
high speed finished plastic chain spiral conveyor may accelerate the can - 副本high speed finished plastic chain spiral conveyor may accelerate the can - 副本high speed finished plastic chain spiral conveyor may accelerate the can - 副本high speed finished plastic chain spiral conveyor may accelerate the can - 副本high speed finished plastic chain spiral conveyor may accelerate the can - 副本

high speed finished plastic chain spiral conveyor may accelerate the can - 副本

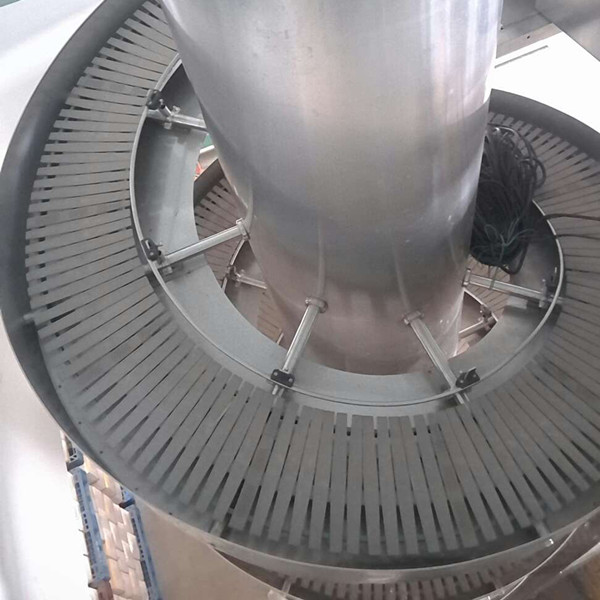

This innovative chain enables a low rolling friction operation without any sliding movements or wear strips on the spiral conveyors.The chain is pulled by a heavy duty steel roller chain and the slats are supported by precision steel roller bearings which ride on a polyurethane surface.This arrangement effectively takes up the side forces created by a tight radius and at the same time increases the load carrying capacity.This enables the spiral conveyors to start and stop fully loaded and facilitates high speed,low noise and long life.


Technical data:

belt width available 200-600mm
heights up to 25m
speeds up to 60m/min
loads up to 50kgs/meter
angle of incline 2.5-18 degree
footprint minimum diameter 1240mm
certificate CE


Features:

  • Small Footprint:
The proprietary low friction chain slat belt allow Ryson Spiral Conveyors to operate within a small footprint, saving valuable floor space. See the chart below for specific dimensions on our most popular models.
  • Horizontal Entry and Exit:
All Spirals are designed with a horizontal section at the in and outfeed. This assures a safe and reliable transition between the spiral and adjoining conveyors without product damage and undue wear.
  • Built in Protection:

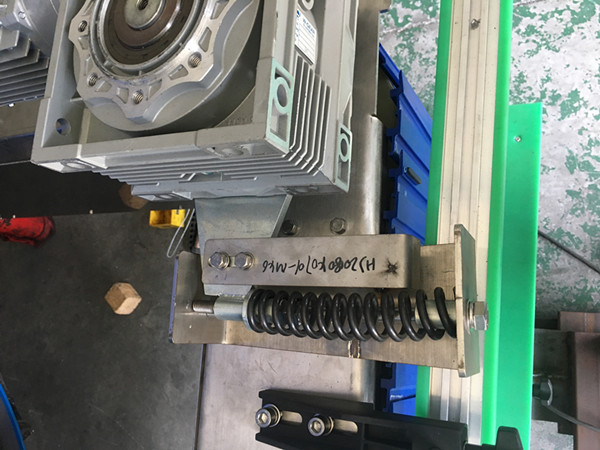

All Ryson Spiral Conveyors are equipped with an automatic chain tensioning device and built-in overload protection as a standard.
  • One Drive:
Only one drive motor is required, resulting in substantial savings in energy, controls and systems integration.
  • Easy to Install:
Most Spiral Conveyors are shipped in one piece, pre-assembled and pre-tested, drastically reducing time and cost of installation.
  • Low Noise:
Our proprietary chain slat belt assures a low noise operation, less than 75 db in most cases.


Details:

1,Middle pillar:Splicing aluminum material
2,High strength spiral chain,effective width=406mm,bottom chain material carbon steel
3,Motor:1.5KW*380V*50HZ,China local famous brand or SEW or Siemenz
4,Speed: 0-60m/min,with inverter to change speed
5,Side plate:SUS201*2T or SUS304*2T bending plate,surface drawing process
6,Support base:80*80 carbon steel square tube,painting processing
7,Chain board center spiral angle:10.7 degree
8,Single motor traction Max to 9 meters height
9,Total height Max to 25 meters combination
